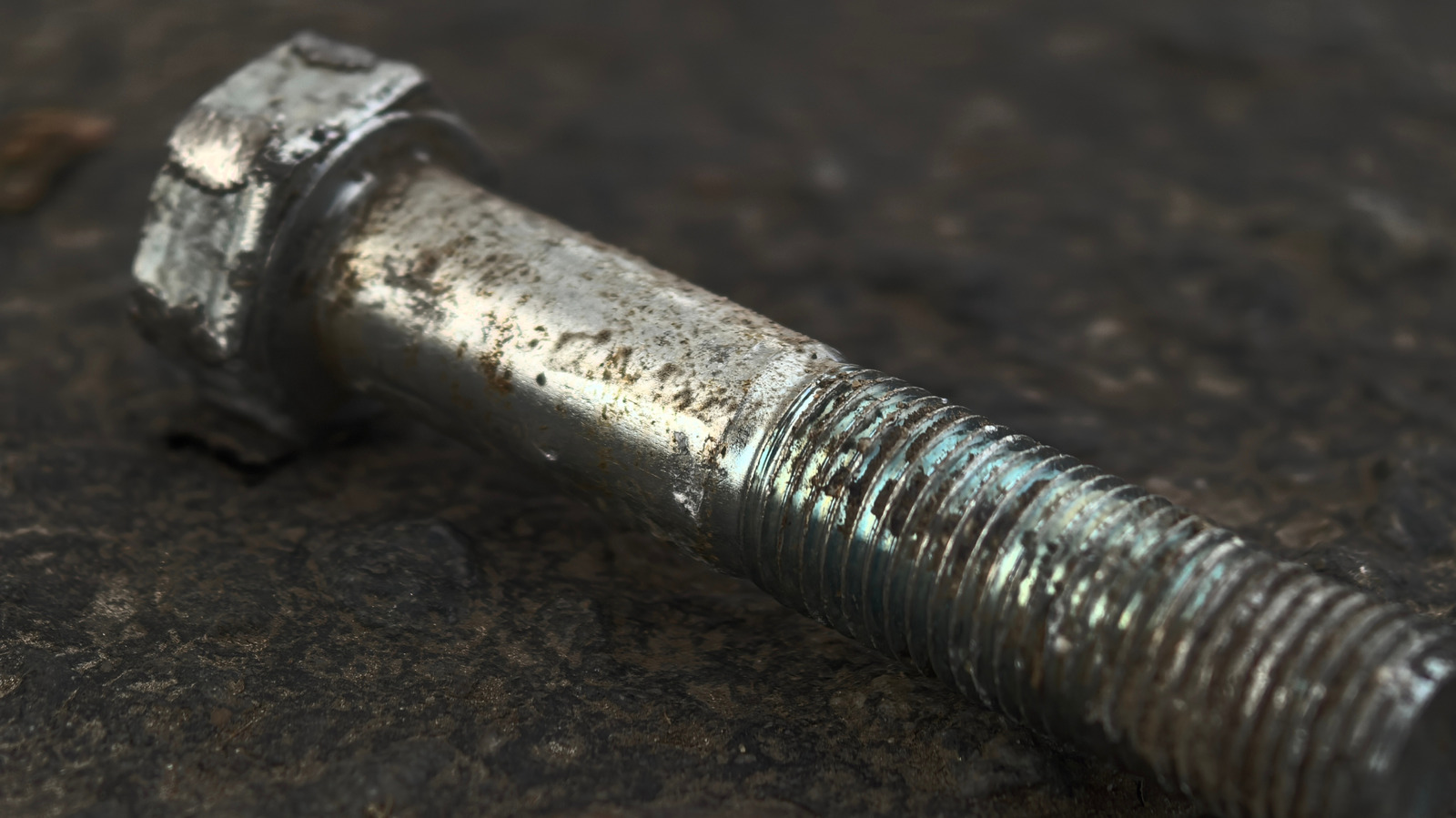

Torque-to-yield (TTY) bolts, also referred to as angle torque or stretch bolts, play a crucial role in modern automotive engineering. These specialized fasteners are designed to be tightened beyond their elastic range and into a controlled yield zone, ensuring they maintain a precise and consistent clamping load. Unlike conventional bolts, which remain within their elastic phase when tightened, TTY bolts undergo permanent deformation, making them single-use components that must be replaced after removal.
The Mechanics Behind TTY Bolts
Automakers have increasingly adopted TTY bolts, particularly in engine design. Historically, engines often combined iron blocks with aluminum cylinder heads and multi-layered metal head gaskets. This combination presents challenges, as the faster expansion rate of aluminum compared to iron can lead to inconsistent head gasket sealing. TTY bolts address this issue effectively.
Engineered to operate near their yield zone, TTY bolts function as controlled springs. This design allows them to accommodate varying thermal expansion rates while maintaining a uniform clamping load across the engine block. By using TTY fasteners, engineers can achieve higher clamping forces with smaller bolts, thereby optimizing design and space within the engine layout.
Challenges for Mechanics and Best Practices
While the benefits of TTY bolts are apparent from a manufacturing perspective, they also introduce specific challenges during engine repair and assembly. Mechanics must adhere to strict protocols when working with these fasteners. Reusing a TTY bolt is inadvisable, as it can significantly reduce the clamping force, leading to potential engine failure. This is due to the permanent changes in the bolt’s elastic properties once it has been tightened past its yield point.
The installation of TTY bolts involves a precise sequence of steps. Initially, a torque value is applied to establish a uniform baseline. Subsequent angle-tightening steps are critical for achieving the desired load. To ensure accuracy, a quality torque wrench and angle gauge are essential tools.
In addition to following the manufacturer’s installation procedure, the condition of the threads is crucial for effective clamping force. For instance, the Cadillac Northstar engine faced significant criticism due to its failures, which were partially attributed to improper thread conditions. Clean and well-maintained threads minimize friction and enhance clamping efficiency. Mechanics are advised to clean bolt holes, lightly oil threads unless specified otherwise, and apply sealant where bolts enter water jackets.
In summary, TTY bolts are a vital component in automotive engineering, enabling stronger and more efficient engine designs. Their unique properties allow for better performance but require precise handling during assembly and repair. Understanding these fasteners is essential for both automakers and mechanics to ensure the longevity and reliability of modern engines.
