Turning an ESP32 into a travel router is now a straightforward project for tech enthusiasts, thanks to contributions from developer martin-ger. This modification allows users to extend internet access from a single device to multiple devices while traveling, whether on a plane, in a hotel, or using public Wi-Fi.
Users can create a basic travel router in just a few minutes, although some technical knowledge is beneficial. The process requires the installation of an older version of the ESP-IDF SDK, specifically version 5.2.6, as the project is not fully compatible with the latest releases.
Setting Up the ESP32 as a Router

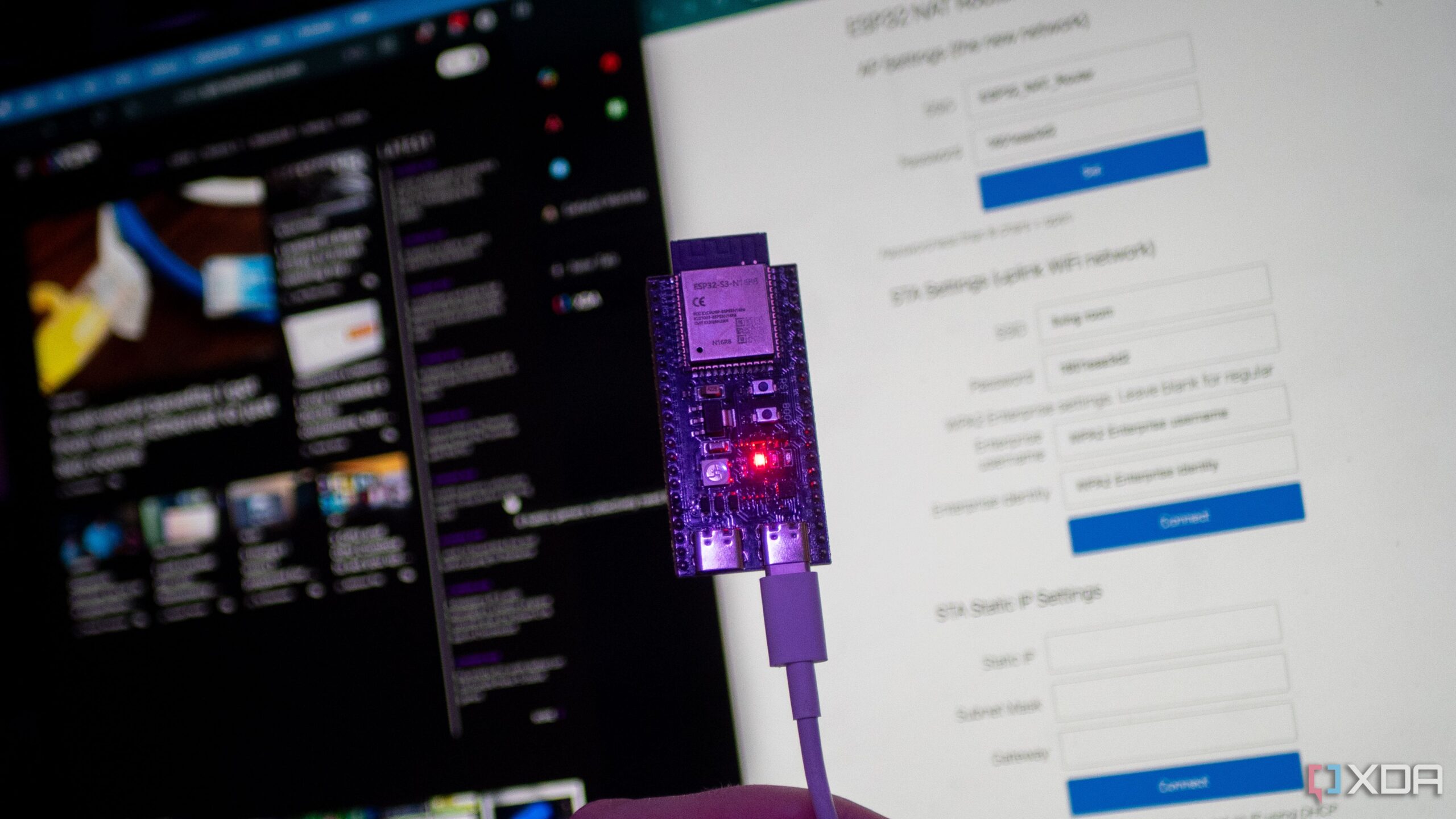

To begin, users need to prepare their ESP32 device. While the ESP32-S3 is the version used for this project, it is worth noting that this microcontroller was not originally designed for routing purposes. However, it can serve as a temporary solution for sharing internet connections when necessary.
Hardware enthusiasts can use the ESP-IDF VS Code plugin for a smoother setup. This tool simplifies the compilation process and ensures that users have the correct version installed. After cloning the GitHub repository and configuring the settings as described in the README file, users can flash the firmware onto the ESP32.
Once set up, connecting a device to the router is simple. Users can navigate to the local address “192.168.4.1” in their web browser to configure the access point’s SSID and password, as well as the upstream network connection. The interface is user-friendly, allowing for additional customizations, including port forwarding options to enhance functionality.
Performance and Limitations
While the ESP32 travel router can provide internet access, performance can vary significantly. Users have reported download speeds of up to 15 Mbps, but in practical tests, speeds may be much lower. In one instance, a user noted a download speed of 5.6 Mbps, which, while slower than some alternatives, is still acceptable for basic browsing or connecting IoT devices.
The setup also offers advanced features such as support for deep sleep and light sleep modes, which can help conserve power when the device is not in active use. Furthermore, users can define static port mappings for upstream networks, providing additional control over their network configuration.
In conclusion, while the ESP32 may not be the ideal choice for a dedicated travel router, it serves as a viable option for those in need of a quick and cost-effective solution. As tech enthusiasts continue to explore the capabilities of microcontrollers, projects like this highlight the innovative ways users can adapt technology for practical applications in everyday life.
