Research into nanoparticles often faces a significant challenge: the minuscule size of the subjects makes them difficult to analyze using traditional optical microscopy. To address this issue, researchers have developed innovative techniques, such as the dynamic light scattering system known as OpenDLS, created by Etienne.
Dynamic light scattering (DLS) offers a practical solution for laboratories that may not have access to high-end equipment like scanning electron microscopes. This method involves directing a laser beam into a suspension of fine particles and utilizing a light sensor to measure the intensity of the scattered light. As particles undergo Brownian motion, the variation in scattered light intensity allows researchers to calculate the speed of these particles, and subsequently, their size.
Technical Insights into OpenDLS

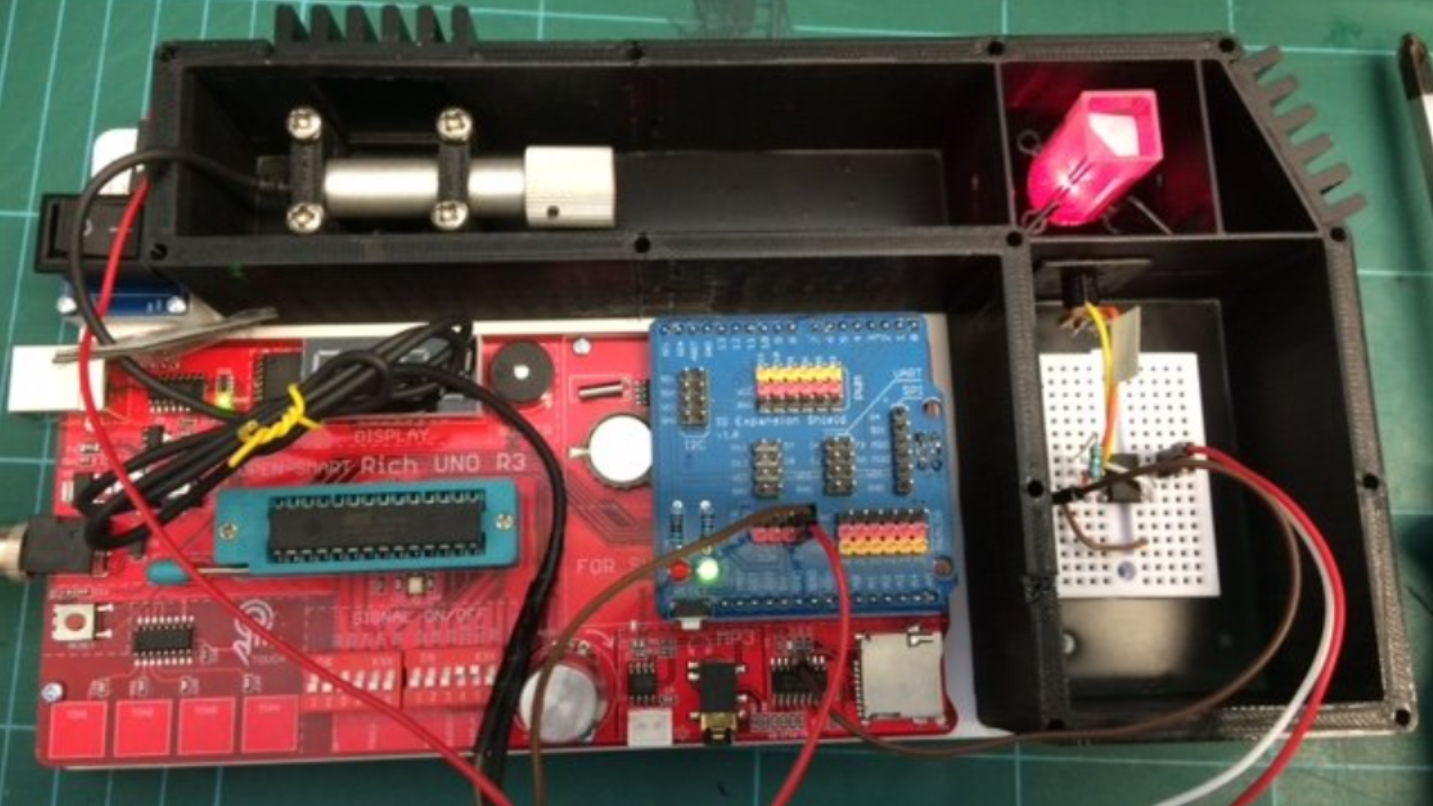

The OpenDLS system features a frame constructed from 3D printed and laser-cut materials. A small laser diode illuminates a cuvette, while a light sensor captures the scattered light. Initially, Etienne experimented with various options, including a photoresistor and an Arduino-compatible light sensor, ultimately opting for a photodiode paired with a two-stage transimpedance amplifier. An Arduino device samples data at a rate of 67 kHz, transmitting it to a host computer that leverages SciPy and NumPy for data analysis.
Despite the system’s innovative design, there are some limitations. The software developed for OpenDLS was written in Python 2 and has become somewhat outdated. Nevertheless, individuals with programming skills should find it manageable to update the software for current use. In tests with a standard 188 nm polystyrene dispersion, the OpenDLS calculated an average particle size of 167 nm. This underestimation is likely due to multiple scattering events. Although diluting the suspension may improve accuracy, it poses the challenge of diminishing the measurable signal, as the system is already operating at the limits of its hardware capabilities.
Exploring Alternatives for Nanoparticle Measurement
The OpenDLS system is not the only approach available for measuring small particles. Other optical methods also exist, providing a variety of options depending on the laboratory’s resources. For those equipped with electron microscopes, nanoparticles serve as excellent test subjects, allowing for precise imaging and analysis.
As research into nanoparticles continues to expand, tools like OpenDLS demonstrate the ingenuity and adaptability of scientists working within the constraints of their facilities. By utilizing cost-effective and accessible technology, researchers can advance their understanding of these tiny yet significant particles, paving the way for future innovations in nanotechnology.
